Building an Oval Table with Abstract Shelves

Building an Oval Table with Abstract Shelves and Sculpted Legs

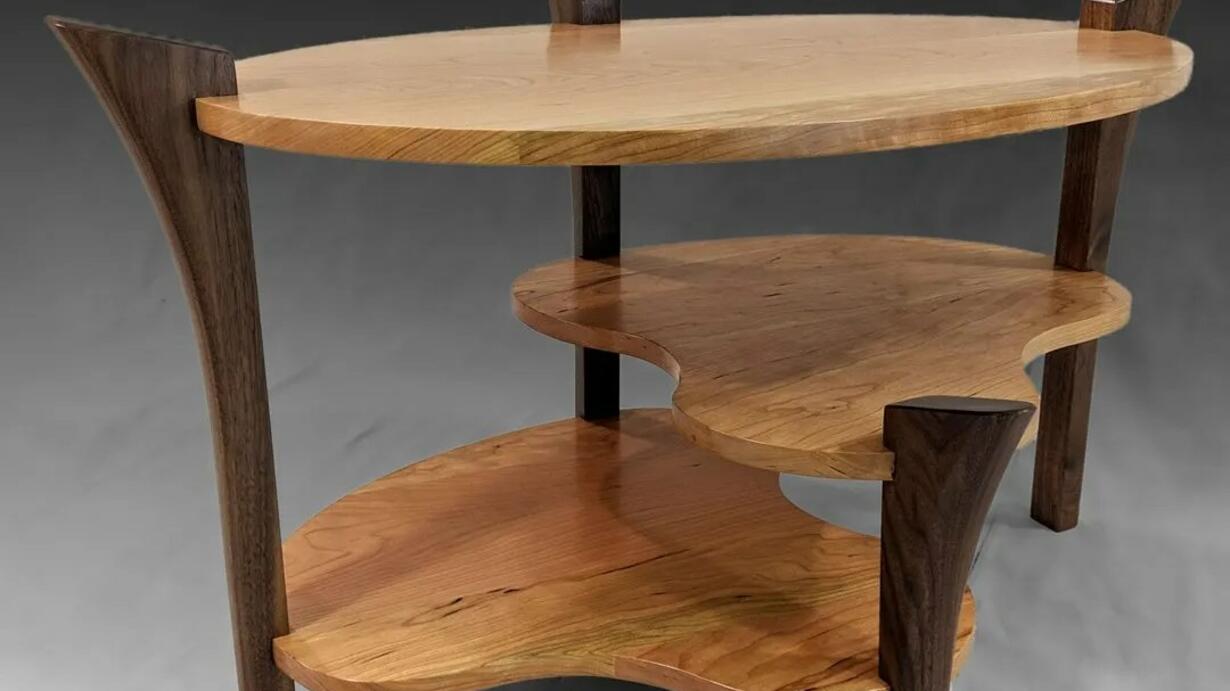

For today’s Custom Furniture project, I set out to build a unique oval table with abstract lower shelves and sculpted legs. The process was a mix of careful planning, improvisation, and a little bit of trial and error—especially when my daughter compared the Oval Table design to Squidward’s head from SpongeBob SquarePants!

Milling the Lumber and Glue-Up

I started by milling the lumber as usual, but when it came to the glue-up, I decided against using dominos for alignment—something I typically rely on. Since I was cutting an oval shape and some abstract curves later, I didn’t want to risk a domino being exposed on the edges.

Instead, I cut some cauls and covered them with packing tape to prevent glue adhesion. These helped keep the panels flat during the glue-up. To make clamping easier, I spaced the clamps off the workbench with scrap wood, allowing room for the clamps to slide underneath the material.

Cutting the Oval Shape

After the glue-up, I crafted a quick shop-made oval-cutting jig. I’m no mathematician, but the basic idea is that the jig has two sliding pivot points—one controlling the length of the oval and the other controlling the width. I double-stick taped the jig to the center of my workpiece and made several shallow passes with the router until I cut all the way through.

Shaping the Lower Shelves

The lower shelves only extended halfway across the table, so I glued up two shorter blanks and traced half of the oval onto them. After rough-cutting them on the bandsaw (leaving the line for cleanup), I used double-stick tape to attach the top to the lower shelf. Then, with a bearing-guided bit on the router table, I matched the shelf’s curve to the tabletop.

Where the oval transitioned into the abstract shape, I blended the curves with a disc sander. My daughter’s observation that it resembled Squidward’s head was too amusing to ignore—so with her approval, I refined the shape and cut it out on the bandsaw. After cleaning up the cuts at the spindle sander, I used double-stick tape again to make a matching copy for the second shelf.

Designing the Legs

Originally, I thought using the oval’s arch for the legs would be clever, but after sketching it out, I realized it looked too busy with too many steep curves. Instead, I opted for straight legs with a curved top section, resembling the shape of a calla lily flower.

To cut the legs safely, I used a table saw for the straight portion and switched to the bandsaw for the curve. Then, I refined the shape at the spindle sander and hand-sanded with a flexible strip to ensure a smooth transition.

To prevent kickback at the router table, I added small plywood blocks with CA glue at the start and end of the template. This gave the router bit a solid surface to engage before cutting into the workpiece.

Joining the Legs to the Table

The legs were notched to fit into the tabletop and shelves. A dado
